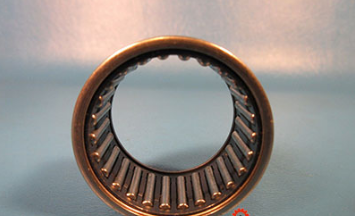

IKO Number: TA 5040Z

Mass (Ref.): 210 g

Assembled inner ring: IRT 4540

Fw: 50 mm

D: 62 mm

C: 40 mm

Shaft dia. h6max.: 50 mm

Shaft dia. h6min.: 49.984 mm

Housing bore dia. J7max.: 62.018 mm

Housing bore dia. J7min.: 61.988 mm

Dynamic, C: 76.5 kN

Static, C0: 157 kN

Allowable rotational speed: 6500 rpm
